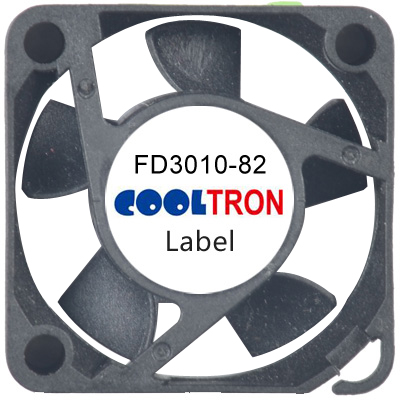

Series FD3010-82

Specifications:

Housing/Blade:
Thermoplastic PBT, UL 94V-0

Insulation Resistance:
10MΩ, 500VDC/min between bare wire and frame

Dielectric Strength:
5mA max. 500VAC/min between bare wire and frame

Operation Temp:
-20?~70? (Humidity 15%-90%RH)

Storage Temp:
-40?~85? (Humidity 15%-90%RH)

Lead Wire: UL Type #28 AWG

Weight: 8 g          Packing: 600PCS/CTN
